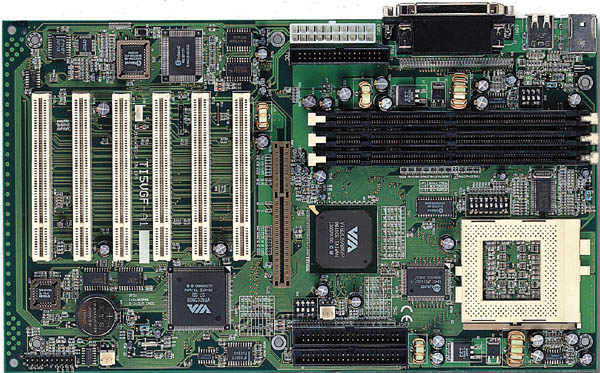

TI5VGF
|
|
Processor Socket |
ZIP Socket 7, 100MHz~550MHz |
| Processor | Intel (Pentium, Pentium w/ MMX), Cyrix (6x86, 6x86L, 6x86MX), AMD (K5, K6, K6-2, K6-3) |
| Chipset | MVP3 |
| Bus Speed | 66/ 75/ 83/ 95/ 100/ 112/ 124/ 133MHz |
| Memory | Three 168-pin DIMM socket Max, 384MB, EDO/SDRAM ECC/Panity checking |
| Cache Size | 1MB or 2MB Pipelined Burst SRAM |
| Power Management | ACPI |
| Onboard IDE | Built-in VT82C586B Bus Master Ultra DMA/33 PIO Mode 0-4, DMA Mode 0-2 and two channels for up to 4 IDE devices |
| Onboard Multi I/O | Winbond 83877 chipset One floppy interface Two 16550 UART compatible serial ports One EPP/ECP parallel port |
| Wake on LAN | 3-pin headers |
| USB | Double stacked connector |
| Keyboard and Mouse | PS/2 connectors |
| IrDA | Pin header |
| Expansion Slots | Six 32-bit Master PCI slots |
| Form Factor | ATX 12" x 7.1" (30.5cm x 18cm) |
| Other Features | Win95 shut-off and Modem ring-on Winbond W83781D H/W Monitoring I/C System Management (SM) bus TMC System Monitor utility (Optional LANDesk utility) Switching voltage regulator |
